Disposable Boat Tray Shape Paper Lunch Box Machine With PLC Program Control
Quick Details
Type: Paper Lunch Box Forming Machine

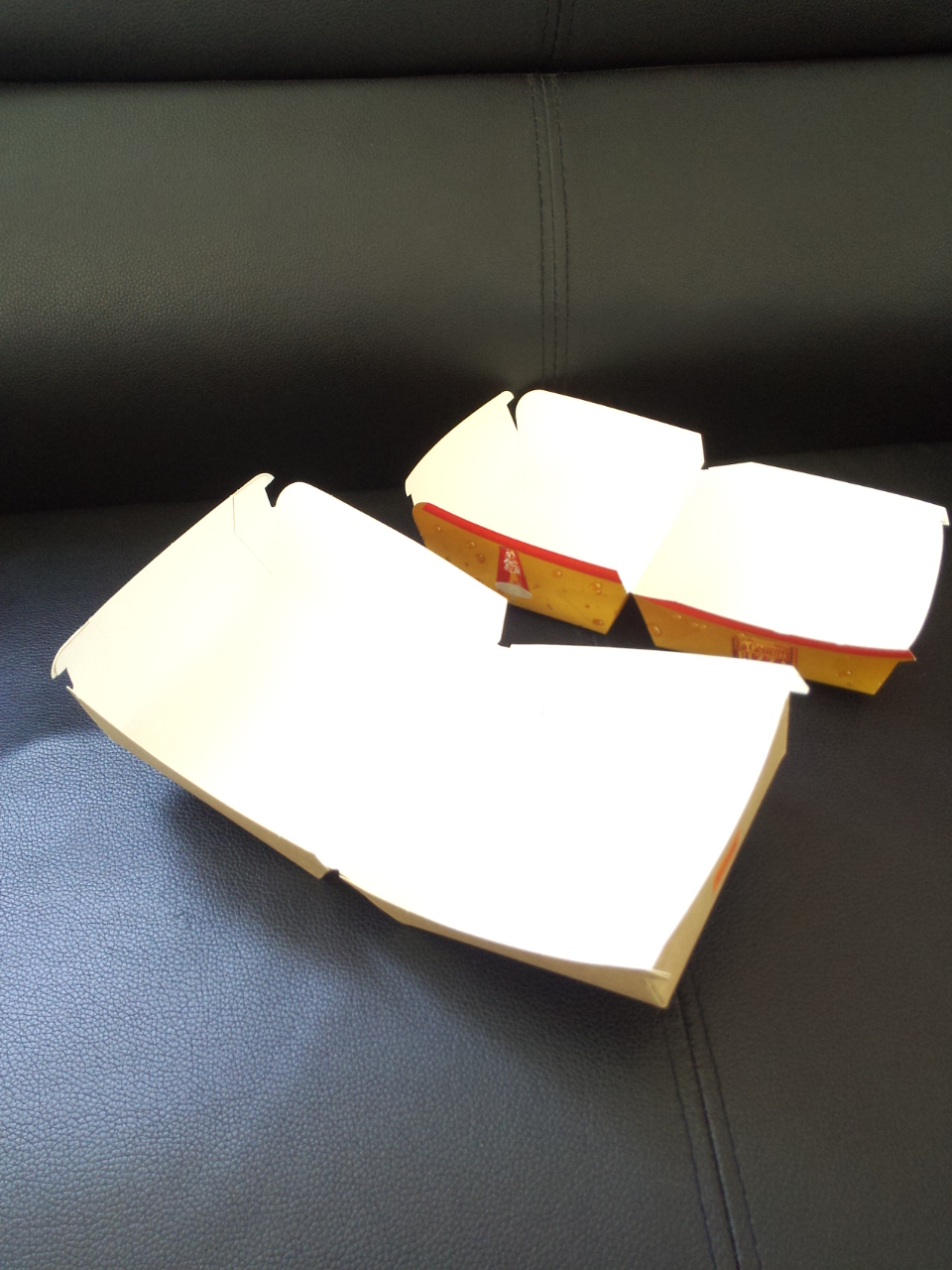

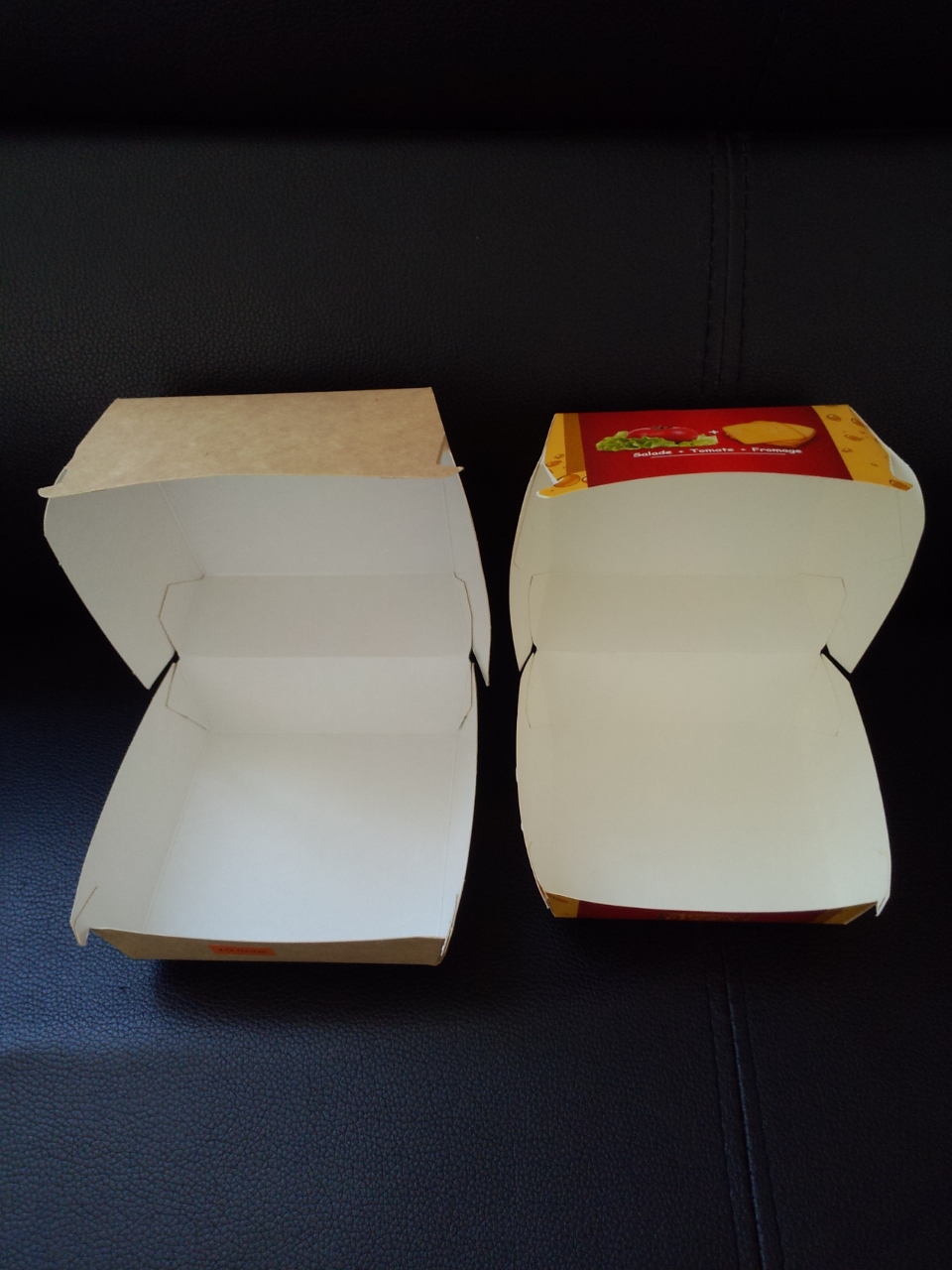

Applications: Hamburger paper Box, Take away box, Paper Box Tray, Boat tray
Raw Material: 200~600gsm cardboard, paperboard
Certificate: CE
After service: Engineers available to service machinery overseas
Packaging detail: Plywood case is the usual exporting packing , also can packing according to the customer's requirements
Delivery Time: 30 days after got Your down payment
Description
New-generation three-dimensional paper lunch box making machine is molding equipment specialized in producing various paper products.
Carton erecting machine can produce hamburger box,square box,potato chipper boxes,food boxes(portable outside) And other boxes made by paperboard and corrugaed paper.
Working Principle:
Blank paper is fed into delivery unit,glued and sent to the mould.The gluing unit will adjust the glue position and glue amout without stop machine.
Finised box will be collectedd after automatic stack and counting,it can also be marked according to preset stack pieces while paper lunch box making machine is running.
Specification
| Model | High Speed Paper Lunch Box Machine |
| Productivity | 60-160pcs/min |
| Power | 380V, 50HZ, 5.5KW |
| Weight | 2000kg |
| Size | 4000*1500*2200 MM |
| Length of box | 100-450mm |
| Width of box | 100-580mm |
| Height of box | 15-200mm |
| Degree | 5° -40° |
| Request of cardboard Material | 200-600g/m2 |
| corrugated paper thickness | 1.5mm |
FEATURE:
1. High speed: max speed is up to 160PCS/min.
2. Multinational:can make Lunch Box, Hamburger box,Ship type box.
cake box etc with various specifications by changing the moulds.
3. This machine adopts Water-based adhesive device, High efficiency.
Water-based glue is water soluble adhesive glue for food grade use, safe.
4. This machine mostly uses high quality sealed bearings, long life, good stability.
5. The machine uses PLC intelligent control system,
automatically shut down when there is paper jam and no paper.
6. Master mold using pine material, replace the mold with high efficiency.
7. Using high quality belt drive, the machine is running with almost no error.
Applications
